IP-6201 Two Way Radio
- Commodity name： IP-6201 Two Way Radio
- Model Number： IP-6201
- Brand： Kydera
- Product Origin： China
- Type： Analog
Category：
Detailed Introduction
Specifications
| Frequency Range | VHF | UHF |
| 136-174MHz 245MHz | 400-480MHz 300-350MHz | |
| Channel Capacity | 199 | |
| PLL Channel Spacing | 5/6.25/10/12.5/25KHz | |
| Battery Voltage | 7.4V(Li-ion)(1500mA Li-ion) | |
| Antenna Impedance | 50Ω | |
| Operating Temperature | -20℃_+60℃ | |
| Frequency Stability | ±2.5PPM | |
| Dimensions (With Battery) | 100(H)X58(W)X35(D)mm | |
| Weight (With Battery) | 220g | |

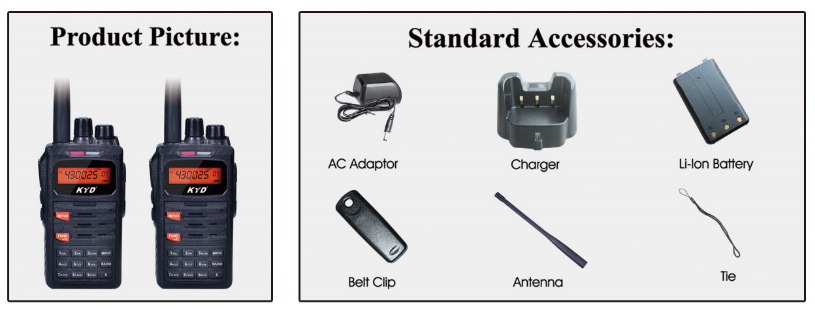

| Standard Package | Gift box (unit body together with the accessories) | |
Compatible With American Military Standard(MIL-STD-810C/D/E)
Transmitter(Measurements made per TIA/EIA-603)
| RF Power Output | 5W |
| Modulation Type | F3E |
| Maximum Deviation | ≤5.0KHz(W) |
| Spurious Emission | ≤65dB |
| Modulation Distortion | ≤5% |
| FM Noise | ≤-45dB(W) |
Receiver(Measurements made per TIA/EIA-603)
| Circuit Type | Double-conversion Superheterodyne |
| IFs | 38.850MHz & 450KHz |
| Sensitivity(12dB SINAD) | 0.2μV(W) |
| Squelch Selectivity | 0.15μV(W) |
| Adjacent Channel Selectivity | >65dB |
| Intermodulation | >65dB |
| Spurious Rejection | >60dB |
| Image Rejection | >65dB |
| FM Ham And Noise | ≤-45dB(W) |
| Modulation Type | 16KOF3E |
| Operating Bandwidth | ≤±7KHz |
| AF Output@ 4 Ohms | 0.5W |
| Audio Distortion |
≤5% |
