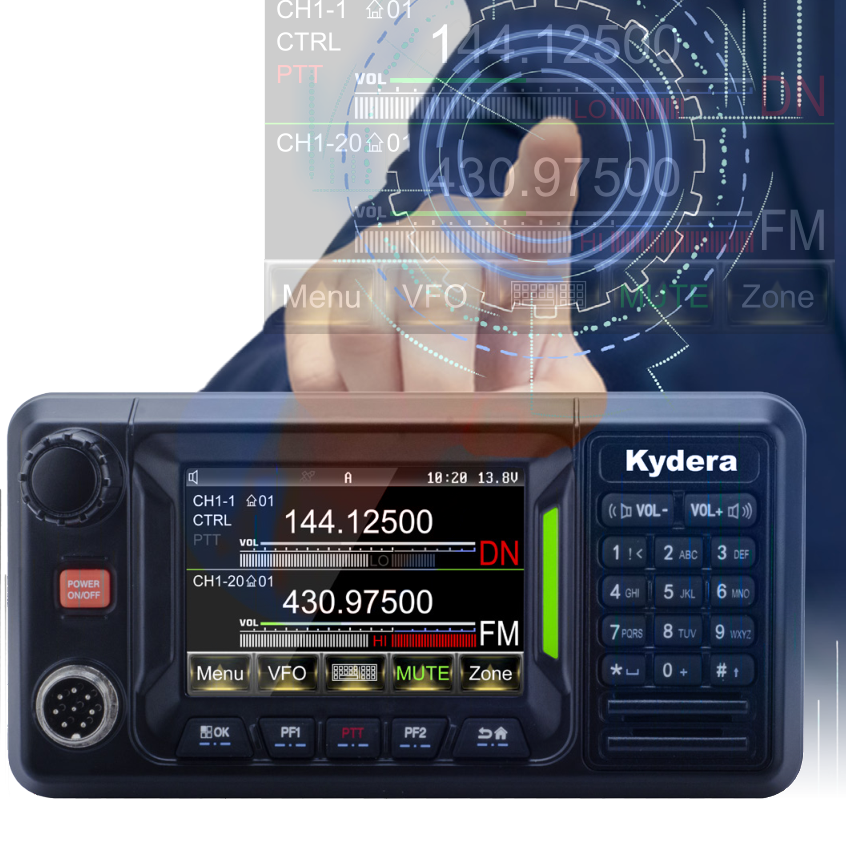

CDR-500UV Metal housing touch screen digital mobile radio
- Commodity name： CDR-500UV Metal housing touch screen digital mobile radio
- Model Number： CDR-500UV(DMR)
- Brand： Kydera
- Product Origin： China
- Type： Digital
Category：
Detailed Introduction
Main Features
• Private call
• Group call
• All call
• Remote Disable
• Remote Enable
• Battery save mode
• One-touch call
• Remote Monitoring
• Call alert
• Recording capacity up to 200 hours
• Low power voice/icon prompt
• Prompt tone on/off
• Remote Monitoring
• Support voice prompt for channel switching or function-option
• Two programmable buttons for long pressing are available on the side
• Metal housing
• GPS
• Bluetooth
• AI-assisted noise reduction technology
Features
1.True 2-slot TDMA
2.Support both digital and analog modes.
3.Equipped with a TFT color display for convenient operation
4.Features a TFT color display interface with visible icon display
5.Supports up to 4000 channels (subject to configuration)
6.Supports frequency modification and setting via keypad
General specification
| Items | UHF | VHF |
| Frequency | 400-480MHz | 136-174MHz |
| Channel Zone | 16 | |
| Channel Capacity | 4000 (250 Channels/Zone) | |
| PLL Channel Spacing | 12.5kHz/25kHz | |
| Operating Temperature | -20℃~+60C | |
| Antenna impedance | 50Ω | |
| Dimension(H*W*D) | 175x70x92mm | |
| Rated Voltage | DC: 13.8V | |
Specification may have minor adjustments without prior notice due to continuous technical upgrades.
Receiver
| Items | UHF | VHF |
| Frequency | 400-480MHz | 136-174MHz |
| Channel Spacing | 12.5kHz/25kHz | |
| Frequency stability (-20℃、+60℃、+25℃) | +/-1.5ppm | |
| Analog sensitivity | 0.3μV/0.25μV | |
| Digital sensitivity(5% BER) | 0.25μV/0.2μV | |
| Intermodulation | 65dB | |
| Adjacent channel selectivity | 60dB@12.5kHz/65dB@25kHz | |
| Spurious rejection | 65dB | |
| Rated audio | 500mw | |
| Audio distortion @rated audio | 3% | |
| FM hum &noise | -40dB@12.5kHz/-45dB@25kHz | |
| Audio response | +1、-3dB | |
| Conducted/radiated emission | -57dBm | |
Transmitter
| Items | UHF | VHF |
| Frequency | 400-480MHz | 136-174MHz |
| Channel Spacing | 12.5kHz/25kHz | |
| Frequency stability (-30℃、+60℃、+25℃) | +/-1.5ppm | |
| Low Power | 10W | 10W |
| High power | 30W | 30W |
| Modulation restriction | ±2.5dB@12.5kHz/±5.0dB@25kHz | |
| FM hum& noise | -40dB@12.5kHz/-45dB@25kHz | |
| Conducted/radiated emission | -36dBm1GHz | |
| Adjacent channel selectivity | -60dB@12.5kHz/-65dB@25kHz | |
| Audio Response | +1、-3dB | |
| Audio Distortion | 3% | |
| FM modulation | 12.5kHz:11KOF3E 25kHz:16KOF3E | |
| 4FSK digital modulation | 12.5kHz data: 7K60F1D and 7K60FXD 12.5kHz audio: 7K60F1E and 77K60FXE 12.5kHz data and audio: 7K60F1W | |
| Digital vocoder | AMBE+2TM | |
| Digital agreement | ETSI-TS102 361-1、-2、-3 | |
